Customized PVDF Architectural Membrane For Global Engineering Supply

Customized PVDF Architectural Membrane For Global Engineering Supply

원래 장소:

중국

브랜드 이름:

Relle

인증:

CE&SGS

모델 번호:

PVDF

문의하기
인용 을 요청 하십시오
제품 상세정보
표면처리:
PVDF
베이스패브릭건축:
100% 애완동물
참마:
고강도폴리에스테르1100/2200Dtex
무게:
1350(+20,-20)g/m²
두께:
1.0~1.03mm
인장강도(날실/위사):
8000/7000N/5cm
인열강도(날실/위사):
1050/950N
접착강도:
130/125N/5cm
부착:
13daN/5cm
DIN표준:
지하 1층
관련 제품
문의하기
제품 설명

Customized PVDF Architectural Membrane For Global Engineering Supply

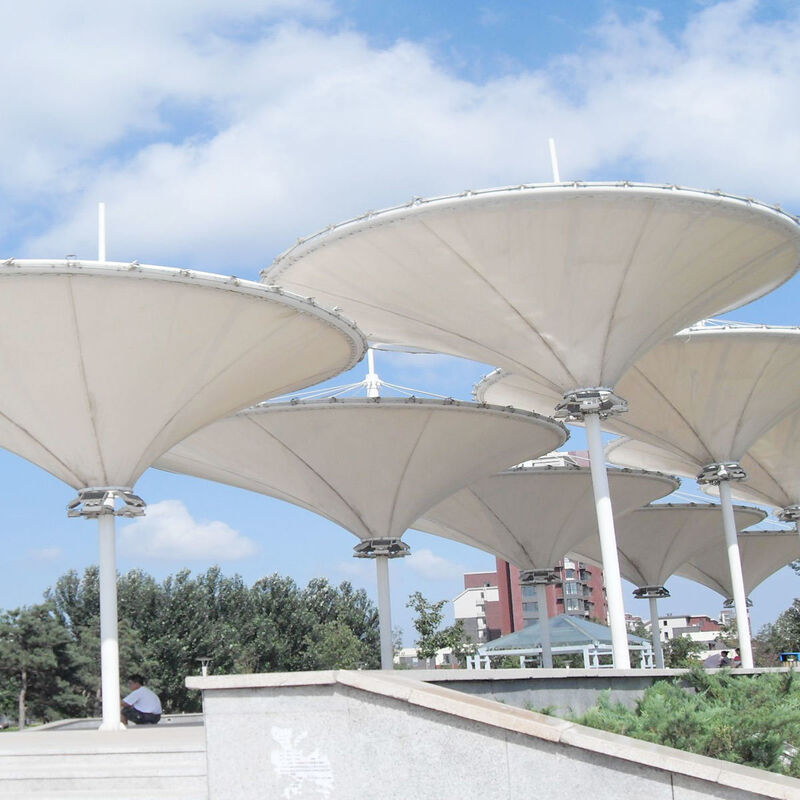

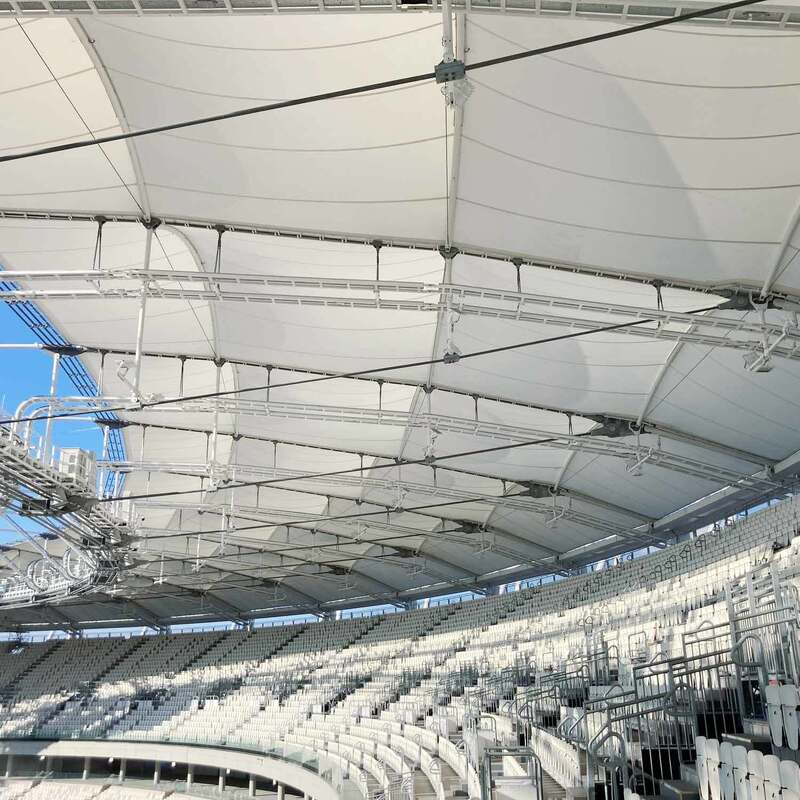

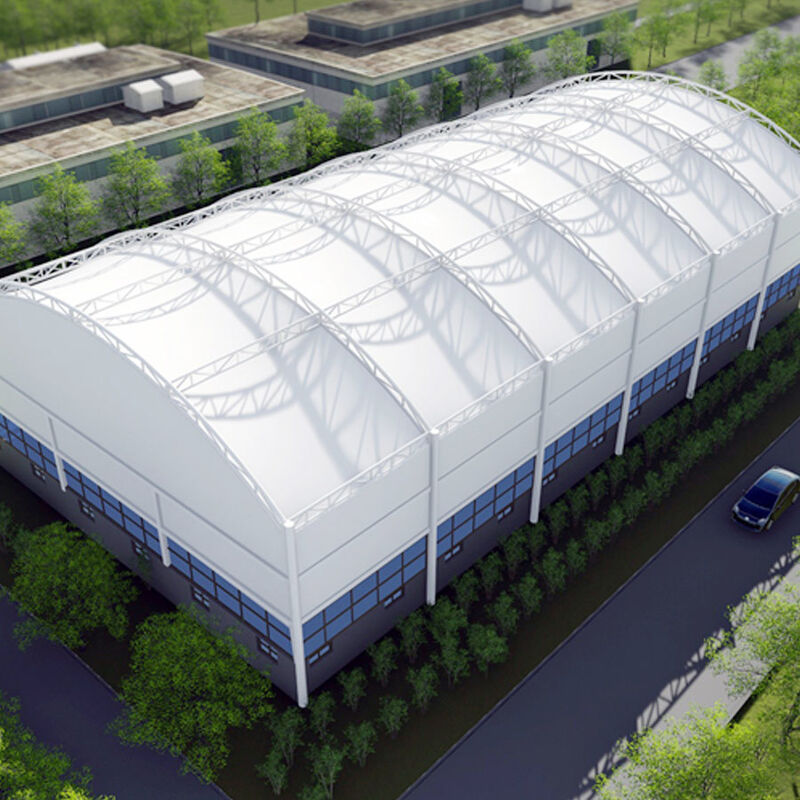

This PVDF building membrane has standard thicknesses 1.0mm to 1.03mm, widths 1000mm to 1800mm and lengths 50m 100m. Customizable colors are offered. It boasts excellent weather UV resistance self cleaning high strength flame retardancy and heat insulation, and is workable for stadium roof wall and tension membrane structure.


Specifications

Customized PVDF Architectural Membrane For Global Engineering Supply 0
  • Surface Coating - The outermost layer, designed to resiststains and wear for long-term durability.
  • PVDF Functional Layer - The core layer that providesexcellent weather resistance, including UV and corrosion protection.
  • Base Fabric Layer - The structural foundation, made ofhigh-strength polyester to enhance mechanical strengthand tensile performance.
  • Back Coating - The bottom layer, which bonds the structuretogether and protects the base fabric from moisture anddamage.
